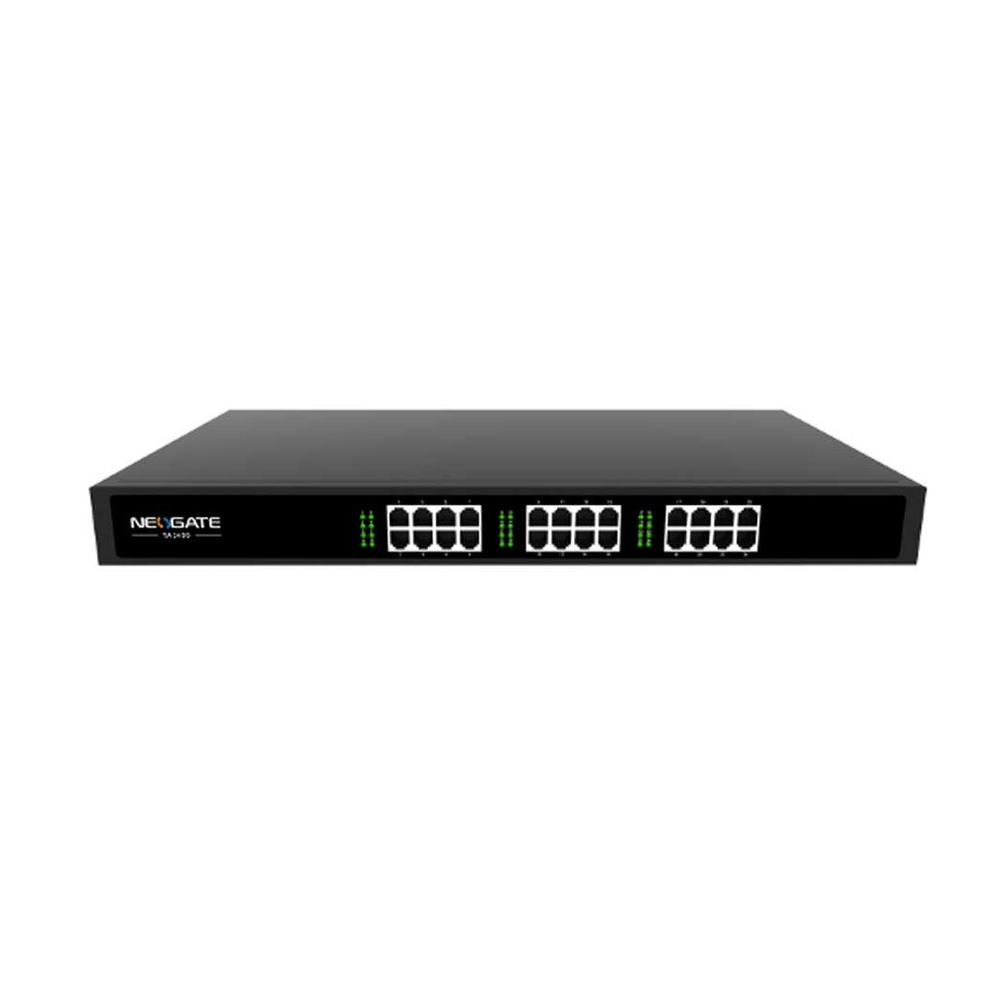

Yeastar TA2400 24-Port FXS VoIP Gateway for enterprise legacy support
Categories:

Yeastar TA2400 – 24 FXS Port VoIP Gateway

$0

BrandYeastar
Model NameTA2400
Ports24 × FXS ports (via 3 RJ21 interfaces)
Interfaces1 × 10/100 Mbps Ethernet LAN port
VoIP ProtocolSIP (RFC3261), IAX2
Sold: 0
Available: 5

Short Description
 The Yeastar TA2400 is a 24-port FXS analog VoIP gateway designed to connect a large number of analog telephones and fax machines to a VoIP network. It is ideal for enterprises, campuses, and hotels that want to retain analog devices while migrating to IP-based communications. The device is 1U rack-mountable and provides high-density, reliable analog-to-SIP connectivity.

Specifications

Ports and Interfaces:

  • 24 × FXS ports (via 3 RJ21 interfaces)

  • 1 × 10/100 Mbps Ethernet LAN port

VoIP Protocols:

  • SIP (RFC3261), IAX2

Voice Codecs:

  • G.711 A-law and µ-law, G.722, G.723, G.726, G.729A/B, GSM, Speex, ADPCM

Fax Support:

  • T.38 Fax
  • G.711 Pass-through

Echo Cancellation:

  • ITU-T G.168 with adjustable echo tail (up to 128 ms)

DTMF Support:

  • In-band
  • RFC2833
  • SIP INFO

Telephony Features:

  • Caller ID, Call Waiting, Call Forwarding
  • Call Transfer (Attended and Blind)
  • Call Hold, 3-Way Conference
  • Speed Dial, Hotline, Do Not Disturb
  • Voicemail MWI indication
  • Polarity Reversal and Busy Tone Disconnect
  • Flexible Dial Plans
Security and Networking

Built-in firewall, IP blacklisting VLAN tagging, Static Routing DDNS, DHCP, PPPoE, NAT traversal (STUN) OpenVPN, TLS, and SRTP encryption
Management and Provisioning

Web-based configuration interface Auto provisioning SNMP, TR-069 Firmware upgrades, Backup and Restore Remote diagnostics and reboot
Form Factor

1U Rackmount
Dimensions

440 × 160 × 44 mm
Power Supply

12V DC, 5A
Power Consumption

Up to 20W
Operating Temperature

0°C to 40°C
Storage Temperature

-20°C to 65°C
Humidity

10% to 90% non-condensing
